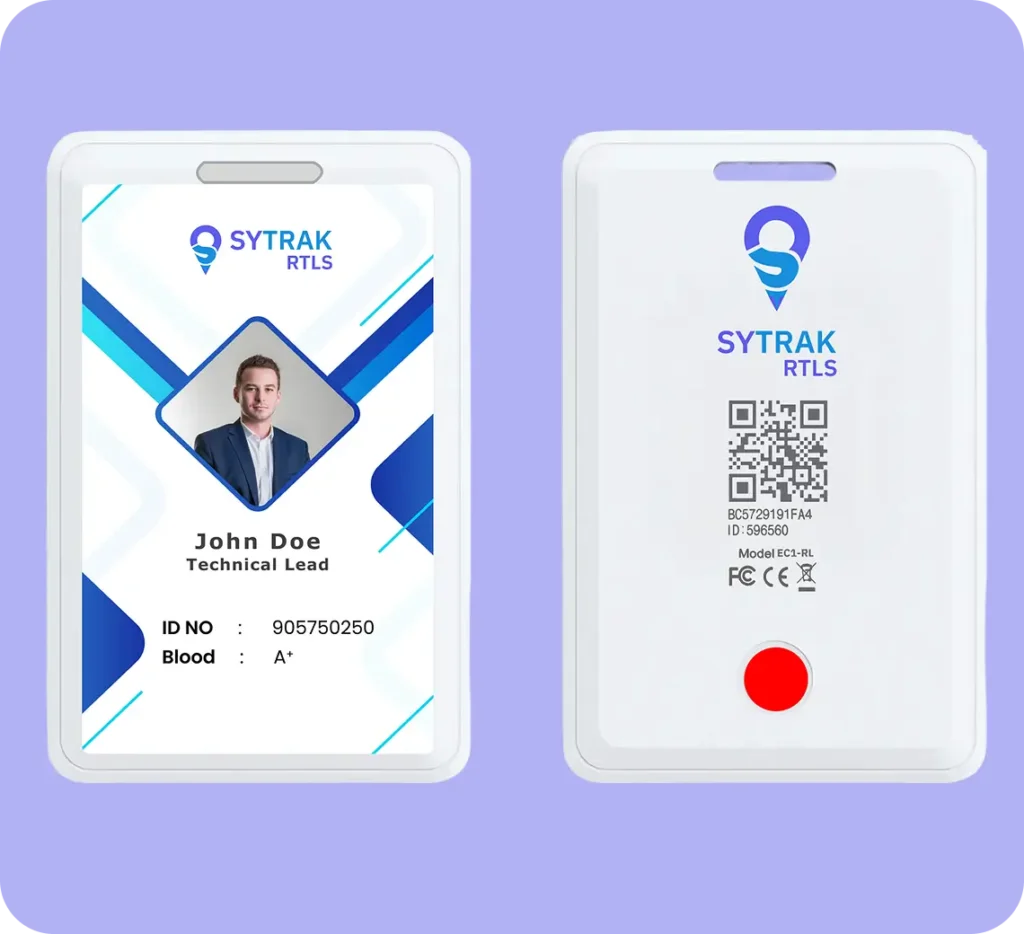

Product Overview
ID Tag - UC1
Technology
UWB
Battery
Non-Replaceable
Dimensions
86mm*56mm*4.6mm
Accuracy
2-5m (Presence Detection)
Industrial Grade
IP67
Type
Personnel
Description

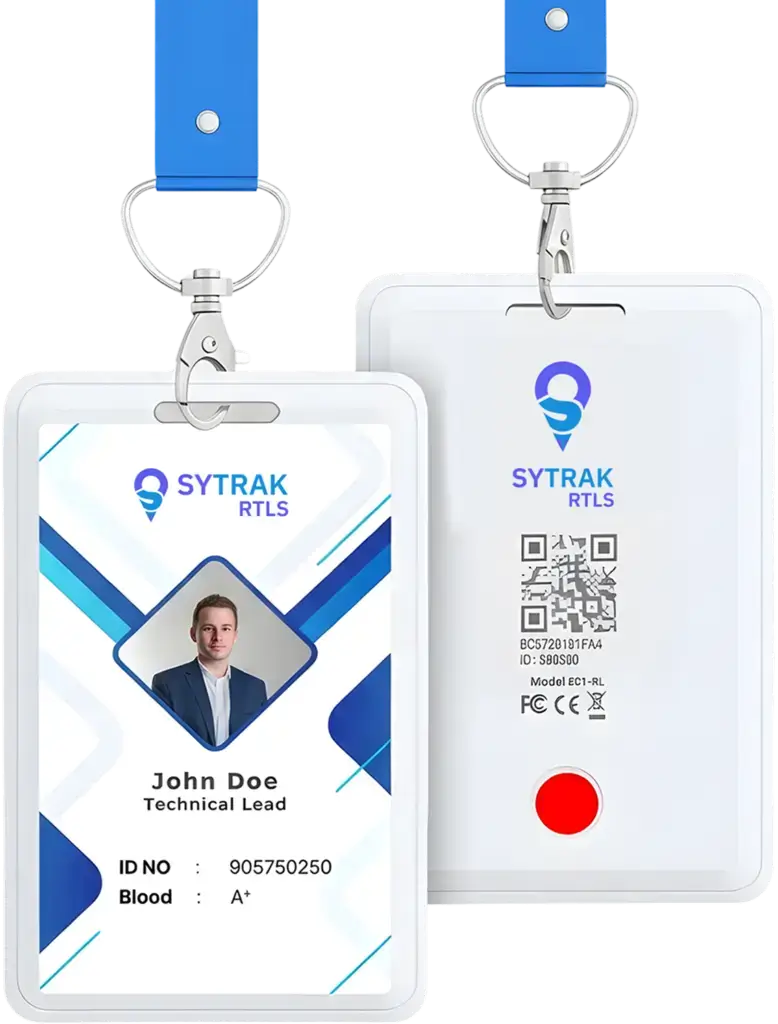

The UC1 UWB ID Card Tag is a compact, industrial-grade wearable device engineered for high-precision workforce visibility and safety within SyTrak RTLS deployments. Designed in a standard ID badge form factor, UC1 enables centimeter-level indoor location awareness, emergency response activation, and zone-based workforce coordination.
With an integrated SOS button, fall detection capability, and IP67-rated enclosure, UC1 ensures reliable performance in demanding industrial environments using advanced Ultra-Wideband positioning technologies.
Available only as part of SyTrak RTLS deployments.
Features
- UWB RTLS wearable tag in ID badge form factor
- High-precision positioning accuracy (10–30 cm)
- Integrated SOS alert button for emergency activation
- Automatic fall detection for worker safety monitoring
- Supports TWR, TDoA, and PDoA positioning technologies
- Ultra-Wideband frequency range: 3.1 GHz – 10.6 GHz
- DW-series UWB chipset architecture
- OTA (Over-the-Air) firmware support
Technical Specifications
Physical Characteristics
Form Factor
ID Badge
Size
86mm*56mm*4.6mm
Color
White
Weight
20g (with battery)
Battery
Li-polymer battery (non-replaceable)
Waterproof level
IP67

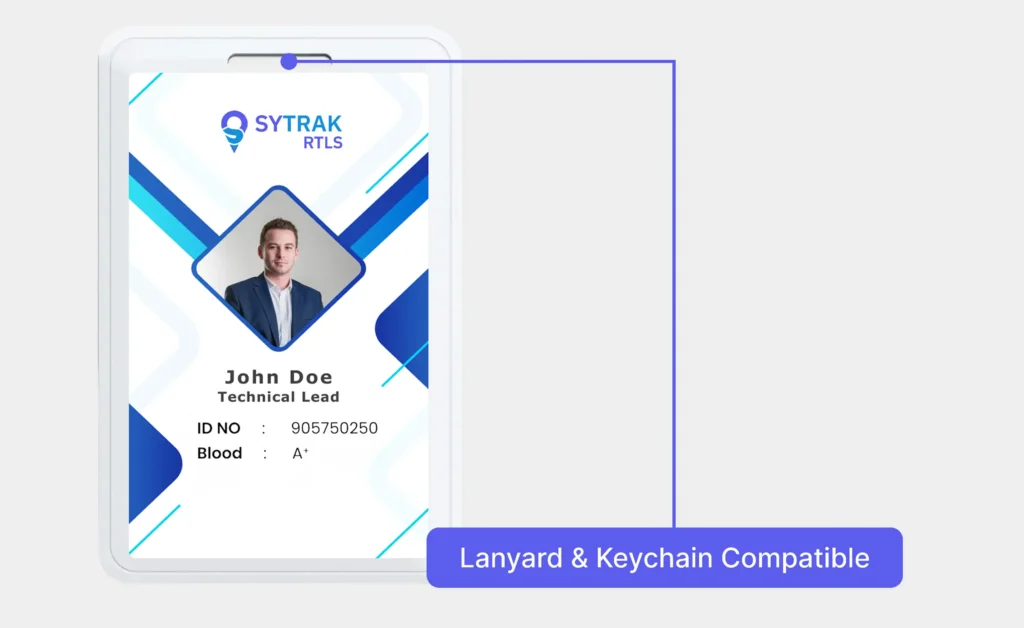

Wearable Options
Lanyard, Keychain

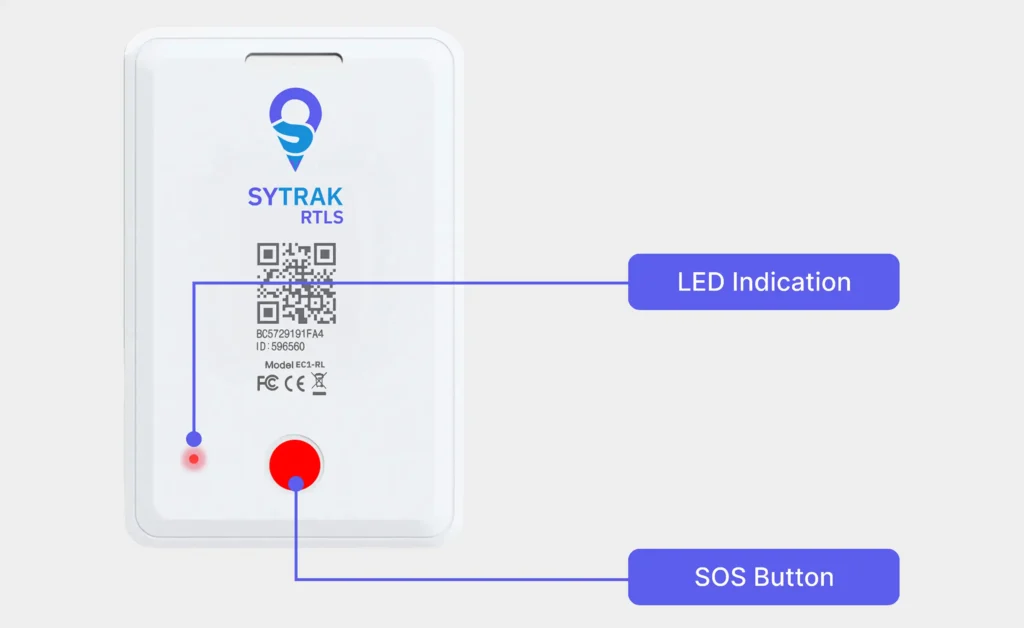

Safety Features
SOS
Button press SOS call
Fall Detection
Accidental fall
Technical Features
Accuracy
10-30cm
Supported Technologies
◆ TWR (Two-Way Ranging)
◆ TDoA (Time Difference of Arrival)
◆ PDoA (Phase Difference of Arrival)
Wireless Frequency Band
3.1 GHz to 10.6 GHz
Chipsets
DWxxxx
OTA
Supported
Button
1 SOS Button
LED
1 LEDs
Rechargeable
No
Working Environment
Operating Temperature
Upto 60°C
Compatibility & Use
Works With
SyTrak RTLS Anchors and SyTrak RTLS Systems
Suitable For
Personnel Safety, SOS, Fall Detection,Tracking, Geo-fencing, Traceability
Used In
Hospital, Lone Worker Safety, Industrial Units, Factories, Warehouses
SyTrak RTLS Deployment Architecture
Industrial real-time location tracking system
Related SyTrak RTLS BLE Beacons
BLE Tracking Devices
Typical Use Cases
EC1 is deployed across environments where workforce visibility and safety coordination are essential.
Workforce Safety Monitoring
High-precision personnel visibility improves safety oversight, rapid incident response, and worker protection in hazardous environments.
Lone Worker Protection
Supports real-time monitoring of workers in isolated or restricted production zones while enabling emergency alert activation.
High-Risk Workforce Tracking
Provides accurate location awareness for workers operating across large construction sites and hazardous work zones.
Restricted Zone Monitoring
Improves security by tracking personnel movement in warehouses, logistics hubs, and high-security operational areas.
Build Your RTLS Deployment
Design a workforce visibility solution tailored to your facility with SyTrak’s RTLS experts.
FAQs
UC1 provides 10–30 cm positioning accuracy when deployed within a properly designed SyTrak UWB RTLS architecture. Actual accuracy depends on anchor placement, layout planning, and environmental conditions.
Yes. UC1 includes an SOS button for manual emergency alerts and automatic fall detection, enabling faster response during safety incidents.
UC1 supports TWR (Two-Way Ranging), TDoA (Time Difference of Arrival), and PDoA (Phase Difference of Arrival) technologies for highly accurate indoor location tracking.
Yes. UC1 is designed for industrial and enterprise deployments, featuring an IP67-rated enclosure and operating temperatures up to 60°C.
No. UC1 is designed to operate as part of SyTrak RTLS deployments and requires SyTrak UWB Anchors and Gateways to capture and process location signals.
