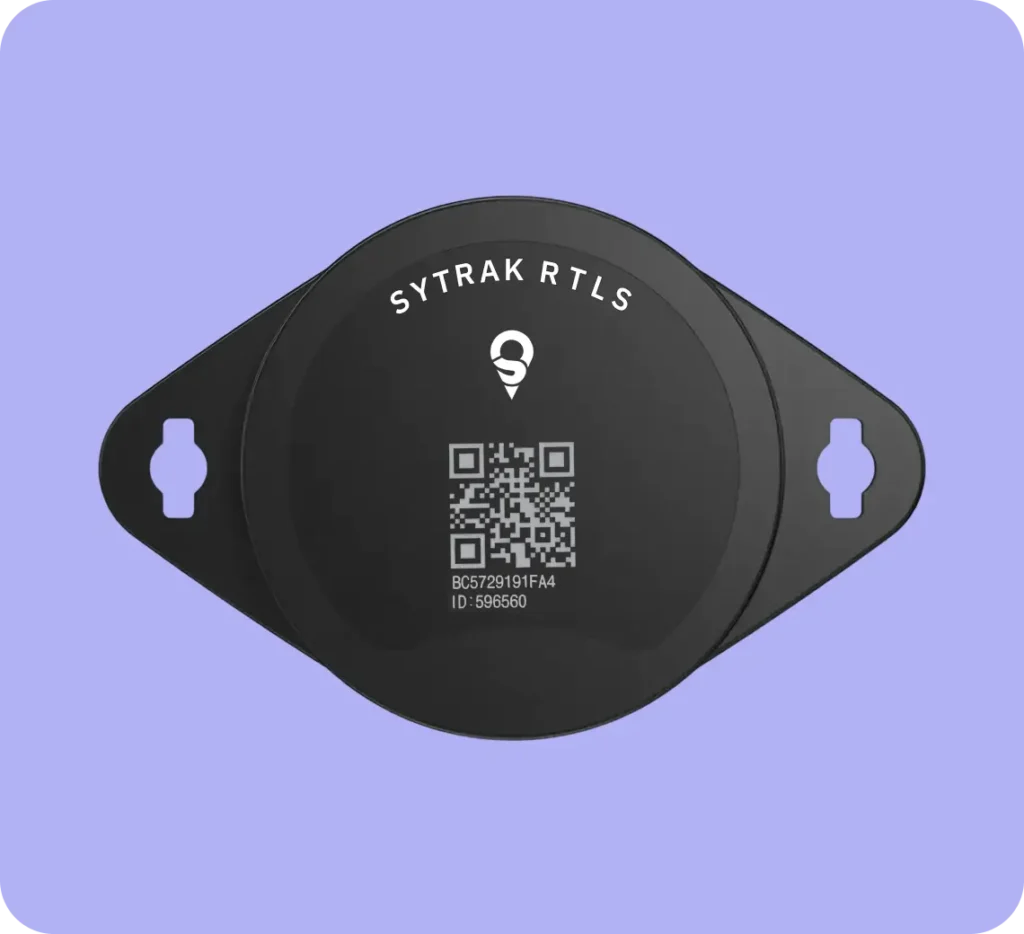

Product Overview
Asset Tag - UA1
Technology
UWB
Battery
Replaceable
Dimensions
Diameter 40*18mm
Accuracy
2-5m (Presence Detection)
Industrial Grade
IP67
Type
Asset
Description

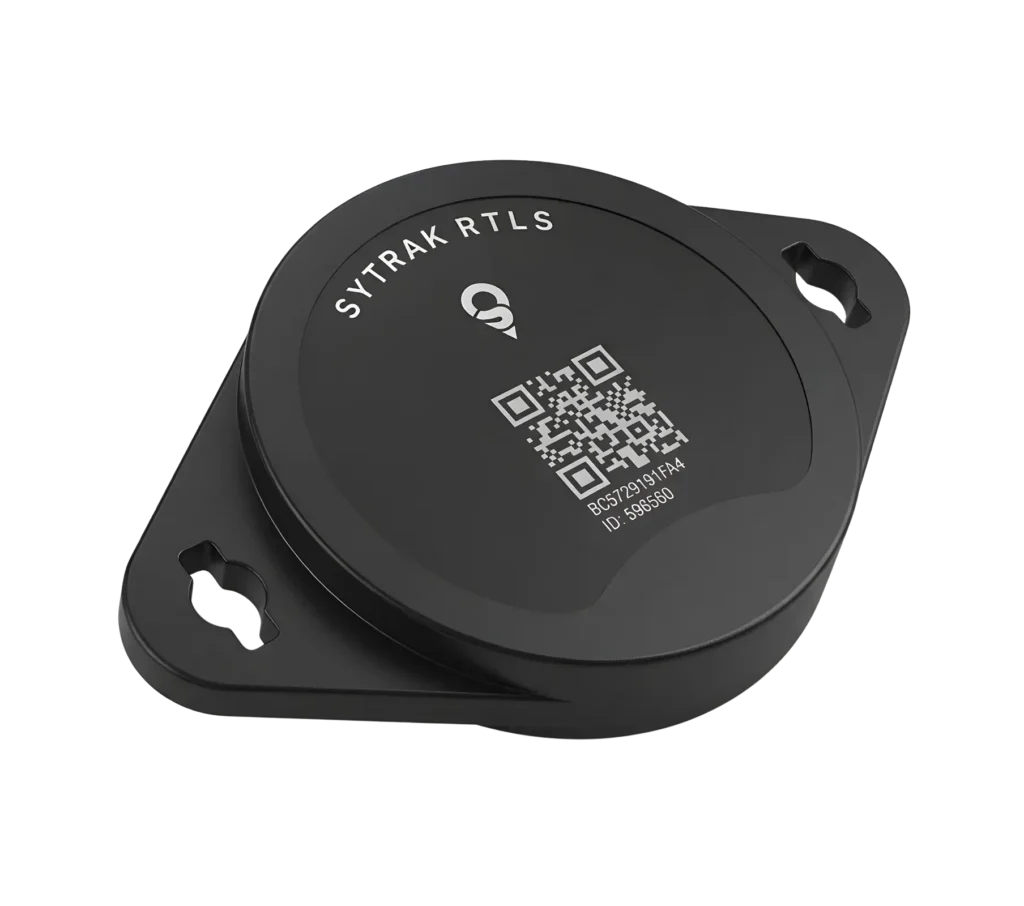

The UA1 UWB Asset Tag is a compact, industrial-grade device designed for high-precision real-time asset visibility within SyTrak RTLS deployments. Built in a durable asset knob form factor, UA1 enables centimeter-level indoor asset tracking, geo-fencing, and movement traceability across enterprise environments.
Powered by a replaceable CR2477 battery and protected by an IP67-rated enclosure, it delivers reliable long-life performance using advanced Ultra-Wideband positioning technologies.
Available only as part of SyTrak RTLS deployments.

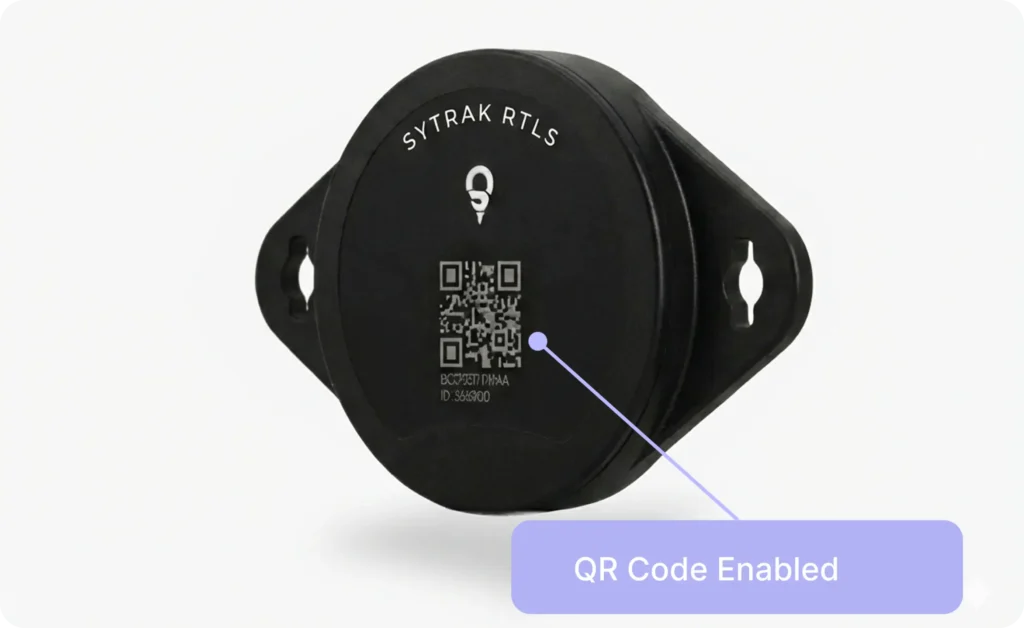

Features
- UWB RTLS Asset Tag in compact knob form factor
- Replaceable CR2477 coin cell battery
- High-precision positioning accuracy (10–30 cm)
- Supports TWR, TDoA, and PDoA positioning technologies
- Ultra-Wideband frequency range: 3.1 GHz – 10.6 GHz
- DW-series UWB chipset architecture
- OTA (Over-the-Air) firmware support
- IP67-rated industrial enclosure
Technical Specifications
Physical Characteristics
Form Factor
Asset Knob
Size
Diameter 40*18mm
Color
Black
Weight
25g (with battery)
Battery
CR2477 Coin Cell(replaceable)
Waterproof level
IP67

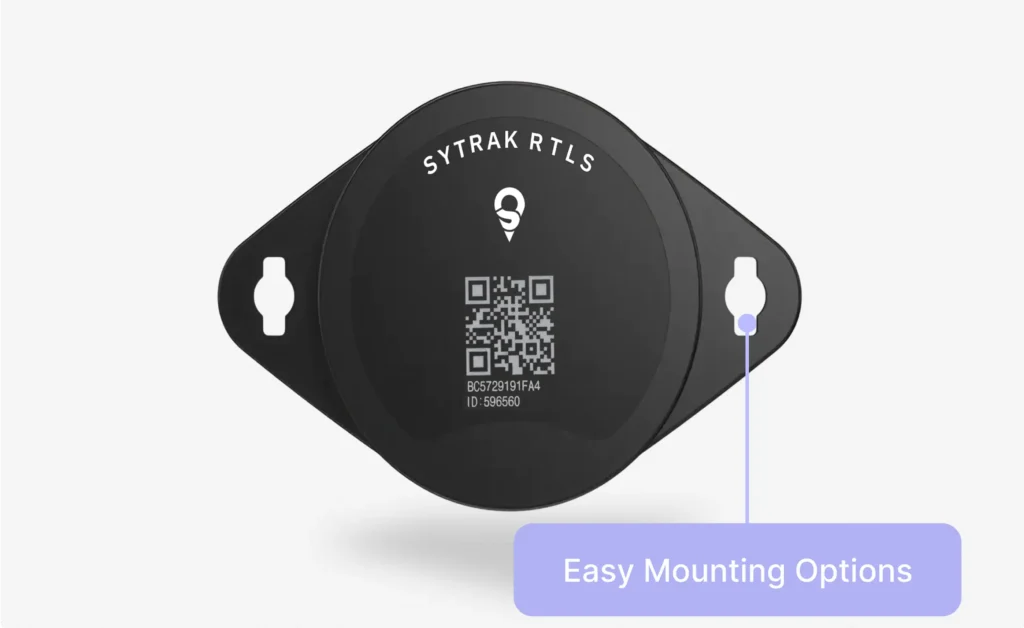

Mount Options
Adhesive, Keychain, Screws
Technical Features
Accuracy
10-30cm
Supported Technologies
◆ TWR (Two-Way Ranging)
◆ TDoA (Time Difference of Arrival)
◆ PDoA (Phase Difference of Arrival)
Wireless Frequency Band
3.1 GHz to 10.6 GHz
Chipsets
DWxxxx
OTA
Supported
Rechargeable
No
Working Environment
Operating Temperature
Upto 60°C
Compatibility & Use
Works With
SyTrak RTLS Anchors and SyTrak RTLS Systems
Suitable For
Asset Tracking, Geo-fencing, Traceability
Used In
Hospital, Industrial Units, Factories, Warehouses
SyTrak RTLS Deployment Architecture
Industrial real-time location tracking system
Related SyTrak RTLS BLE Beacons
High-Performance BLE Deployment Options
Typical Use Cases
Applications Requiring Real-Time Workforce Awareness
Asset Tracking & Traceability
Enables precise tracking of tools, pallets, equipment, and mobile infrastructure across warehouses and distribution centers.
Production Asset Monitoring
Provides accurate visibility of equipment, work-in-progress assets, and production tools across manufacturing floors.
Medical Equipment Tracking
Tracks critical hospital assets such as infusion pumps, wheelchairs, and diagnostic equipment to reduce search time and improve utilization.
High-Precision Warehouse Optimization
Improves operational flow, dispatch accuracy, and asset movement monitoring across logistics hubs and fulfillment facilities.
Build Your RTLS Deployment
Design a workforce visibility solution tailored to your facility with SyTrak’s RTLS experts.
FAQs
UA1 supports high-precision positioning with typical accuracy ranging from 10 to 30 cm, depending on deployment layout, anchor density, and environmental conditions.
Yes. UA1 uses a replaceable CR2477 coin cell battery, allowing simplified maintenance and extended operational lifecycle without replacing the device.
UA1 supports multiple UWB positioning methods including TWR (Two-Way Ranging), TDoA (Time Difference of Arrival), and PDoA (Phase Difference of Arrival), enabling highly accurate indoor tracking within SyTrak RTLS deployments.
UA1 is primarily designed for indoor RTLS environments such as hospitals, factories, warehouses, and industrial facilities. Limited outdoor deployments may be possible depending on infrastructure planning and environmental exposure.
No. UA1 operates as part of SyTrak RTLS deployments and requires SyTrak UWB Anchors and Gateways to capture and process UWB signals. It is not intended for standalone consumer usage.
