EC1-RL BLE Tag for Long-Range RTLS Workforce Visibility
Rechargeable Battery | Coded-PHY Long Range

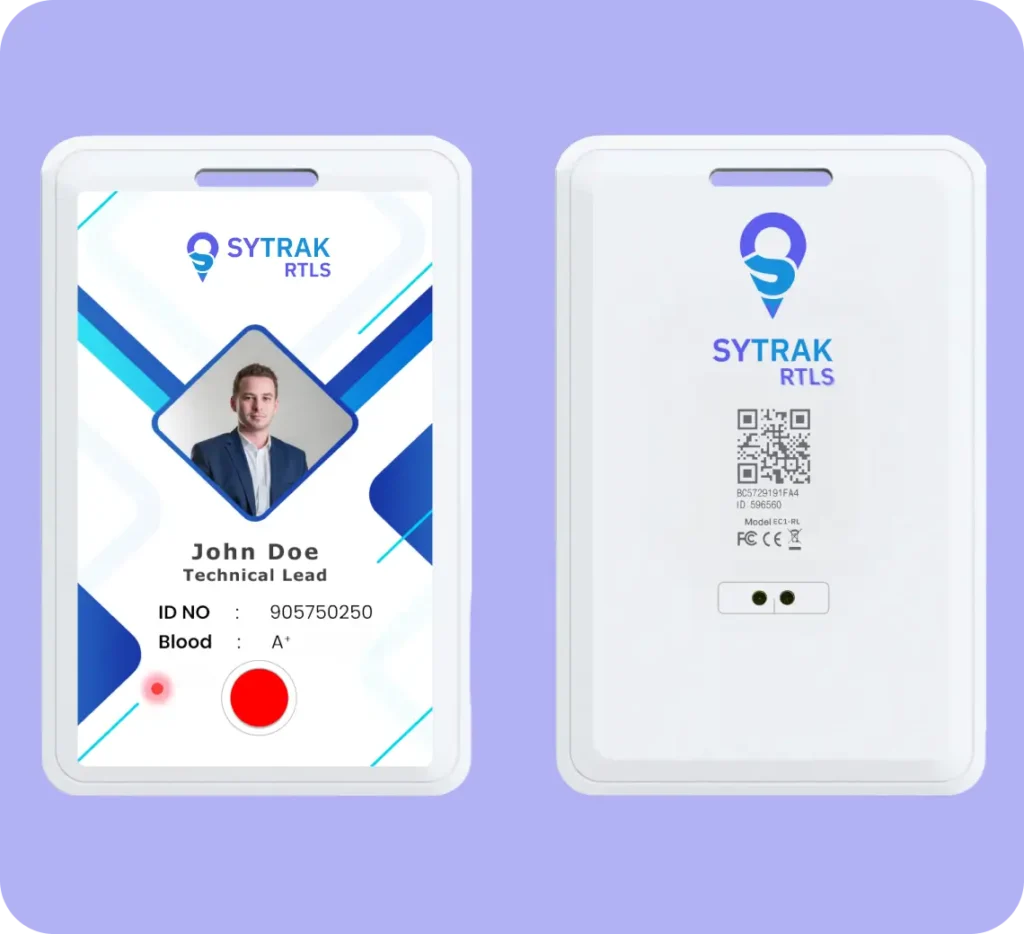

Product Overview
ID Tag - EC1-RL
Technology
BLE
Battery
Non-Replaceable
Dimensions
86mm*56mm*4.6mm
Accuracy
2-5m (Presence Detection)
Industrial Grade
IP67
Type
Personnel
Description

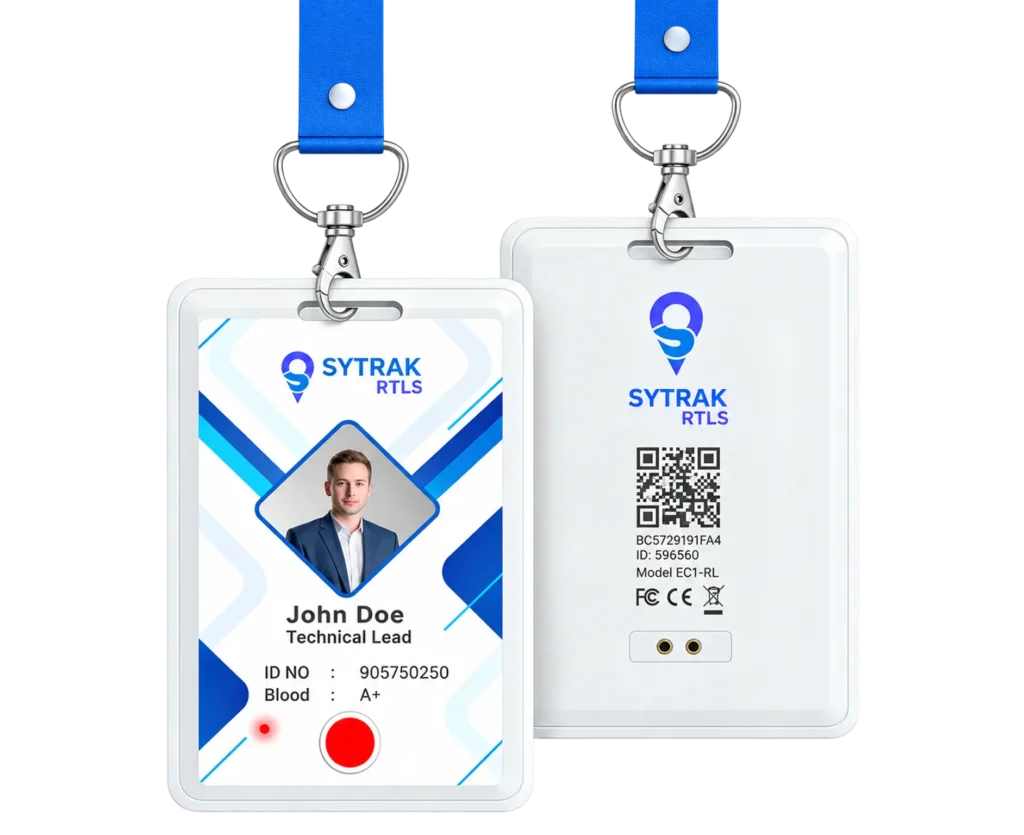

The EC1-RL BLE ID Card Tag is a rechargeable, long-range wearable designed for workforce visibility within SyTrak RTLS deployments. Built in a standard ID badge form factor, it enables precise indoor positioning and extended coverage across large facilities.
EC1-RL features a rechargeable Li-polymer battery, Coded-PHY long-range support, and built-in SOS and fall detection for personnel safety, all within a rugged IP67 enclosure for reliable industrial performance.
Available only as part of SyTrak RTLS deployments.
Features
- Long-range BLE RTLS tag in ID Card form factor

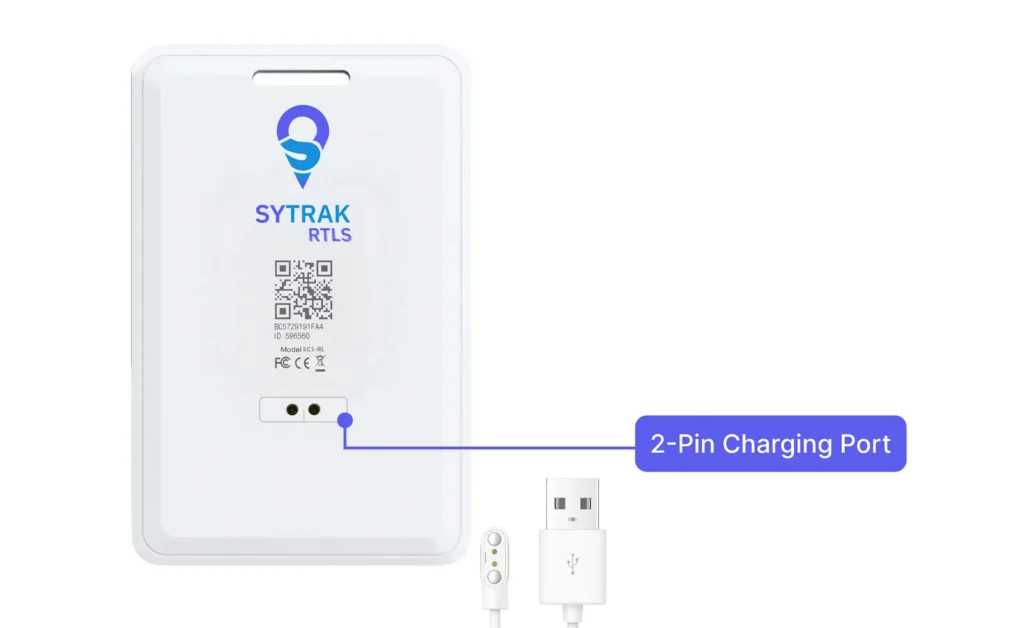

- Rechargeable Li-polymer battery (non-replaceable)
- Coded-PHY Long Range transmission support
- 2.4 GHz BLE frequency band

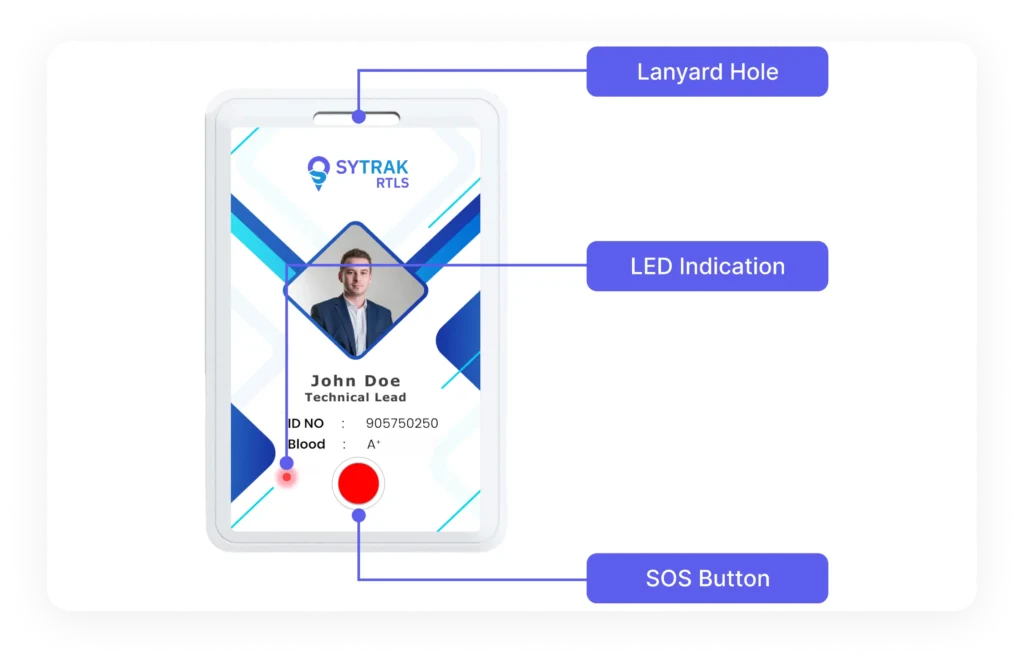

- Integrated SOS button & Fall detection
- Supports AoA, AoD, CTE, and RSSI-based positioning
- Secure, unique identification broadcasts
- IP67-rated industrial enclosure
- Optional tamper detection and OTA firmware support
Technical Specifications
Physical Characteristics
Form Factor
ID Badge
Size
86mm*56mm*4.6mm
Color
White
Weight
20g (with battery)
Battery
Li-polymer battery (non-replaceable)
Waterproof level
IP67
Wearable Options
Lanyard, Keychain
Safety Features
SOS
Button press SOS call
Fall Detection
Accidental fall
Technical Features
Accuracy
Sub-Meter (<0.1 meters)
Supported Technologies
◆ AoA (Angle of Arrival)
◆ AoD (Angle of Departure)
◆ CTE (Constant Tone Extension)
◆ RSSI (Received Signal Strength Indicator)
Wireless Frequency Band
2.4 GHz
Chipsets
nRF
OTA
Supported
Button
1 SOS Button
LED
1 LEDs
Rechargeable
Yes
Transmit Range
Coded-PHY Long Range
Working Environment
Operating Temperature
Upto 60°C
Compatibility & Use
Works With
SyTrak RTLS Anchors and SyTrak RTLS Systems
Suitable For
Personnel Safety, SOS, Fall Detection,Tracking, Geo-fencing, Traceability
Used In
Hospital, Lone Worker Safety, Industrial Units, Factories, Warehouses
SyTrak RTLS Deployment Architecture
Industrial real-time location tracking system
Related SyTrak RTLS BLE Beacons
High-Performance BLE Deployment Options
Typical Use Cases
Applications Requiring Real-Time Workforce Awareness
Large-Area Workforce Coordination
Improves workforce visibility across agro-processing plants, storage units, and distributed agricultural facilities.
Workforce Safety Monitoring
Real-time personnel visibility enhances safety oversight, rapid incident response, and operational coordination in regulated or high-risk environments.
Assembly & Testing Facility Coordination
Provides structured workforce visibility across automotive production lines and controlled engineering zones.
Zone-Based Workforce Oversight
Improves personnel visibility across high-density warehouse operations to enhance safety compliance and coordination.
Build Your RTLS Deployment
Design a workforce visibility solution tailored to your facility with SyTrak’s RTLS experts.
FAQs
Yes. The EC1-RL features an integrated SOS button for manual emergency activation and built-in fall detection for automatic incident alerts, improving rapid response and workforce safety readiness.
Accuracy depends on deployment design, anchor density, and environmental conditions. Within a properly engineered SyTrak RTLS infrastructure, EC1-RL supports sub-meter accuracy, with optimal performance achieved through structured anchor planning and configuration.
EC1-RL supports AoA (Angle of Arrival), AoD (Angle of Departure), CTE, and RSSI-based positioning technologies, enabling high-precision indoor workforce visibility.
Yes. With Coded-PHY long-range transmission support, EC1-RL is well-suited for large factories, warehouses, and extended industrial environments requiring broader coverage.
No. EC1-RL is designed exclusively for SyTrak RTLS deployments and requires SyTrak RTLS Anchors and Gateways for signal capture, processing, and orchestration. It is not intended for standalone consumer use.
